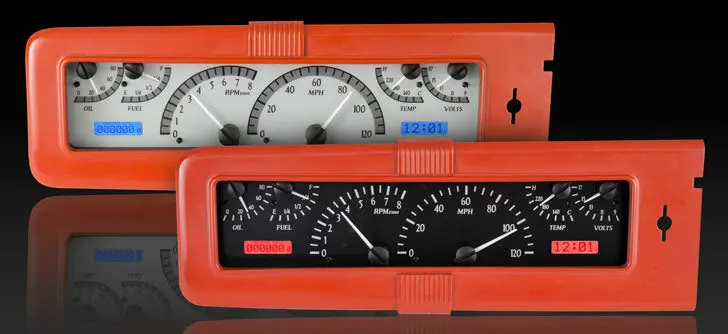

Authentic-looking digital instrument system designed to fit the original 1940 Chevy bezel

Description

Dakota Digital Series III instrument systems offer the latest technologies and features for your custom vehicle. High brightness vacuum fluorescent displays provide a lifetime of trouble free use while offering increased accuracy and features!
Full 6 Gauge Instrument System fits original dash housing to fit 1940 Chevy.

Digital Gauges

Speedometer
·0 -255 MPH (optional metric version 0- 255 km/h)
Tachometer
·0- 17,500 RPM
Oil Pressure
·0- 99 psi
Water Temperature
·0- 300ºF (optional metric version 0- 150ºC)
Fuel Level
·0- 99%
Voltmeter
·8- 17 VDC
Standard Colors
·Blue or Teal

Digital Message Centers

Standard Displays
·Odometer (One time user settable, Million Mile)
·Dual (A/B) Trip Meter (0- 9,999.9)
Performance Meters
·0- 60 MPH Timer (0- 100 kmh)
·1/4 mile time
·1/4 mile end speed (trap speed)
·High speed recall
·High RPM recall
Gauges
·Speedometer (0- 255 MPH/kmh) opposite scale of main speedometer.

Indicators
·Turn Signals (Left/ Right)
·High Beam
·Check Engine
·Parking Brake
·Cruise Control (On/ On & Engaged when vehicle is equipped)
·Gear Position (Optional GSS-3000 sensor required)
·4 x 4 (When vehicle is equipped)
·Wait to Start (When vehicle is equipped)
