Description
(Will not fit Bronco II)

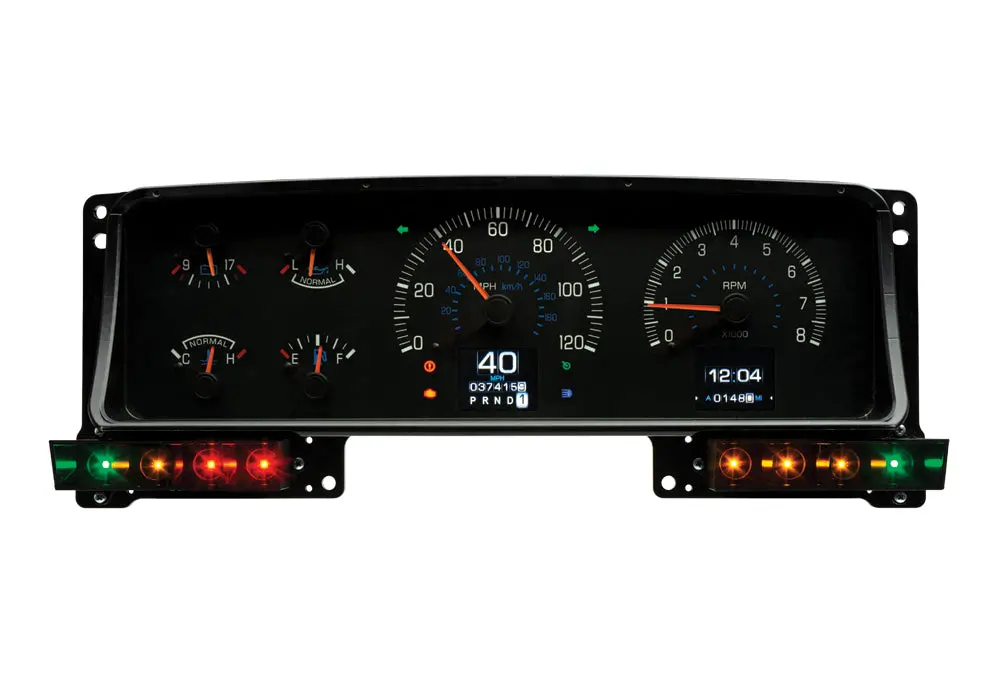

Upgrade your 1987-91 Ford F-Series truck or Bronco with the latest in digital instrumentation while retaining the classic factory look. The Dakota Digital RTX series is designed to blend seamlessly with your original dash while delivering cutting-edge technology and modern performance features.
Key Features:
- OEM-Inspired Design: Maintains the classic stock appearance but with modern LED backlighting and a customizable digital interface.
- Advanced Digital Display: High-definition TFT message centers provide real-time data, customizable readouts, and performance tracking.
- Customizable Lighting: Over 30 user-selectable colors for needle, sweep, and digital displays, with 12 factory preset themes.
- Built-in Indicators: Includes turn signals, high beam, check engine, cruise control, parking brake, and more.
- Performance Tracking: 0-60 MPH timer, 1/4 and 1/8 mile times, top speed recall, and RPM history.
Gauge Readouts:
- Speedometer: 0-120 MPH (Optional metric version: 0-190 km/h)
- Tachometer: 0-8,000 RPM
- Oil Pressure: 0-80 PSI
- Water Temperature: 100-260°F (Optional metric: 40-120°C)
- Fuel Level: E, 1/4, 1/2, 3/4, F
- Voltmeter: 9-17 VDC
Included Sensors & Components:
- Water Temp Sensor: 1/8″ NPT, ground-isolated, 10 ft harness
- Oil Pressure Sensor: 1/8″ NPT solid-state, 10 ft harness
- Cable-Driven Speed Sensor: Replaces OEM speedometer cables (optional relocation kit available)
- Bushings: Includes adapters for 1/8″, 1/4″, 3/8″, 1/2″ NPT, 12mm, and 16mm x 1.5 threads
Smart Control & Calibration:
- Pushbutton Control: Navigate settings and calibration with an included rocker switch.
- Mobile App Integration: Use Bluetooth connectivity to configure settings and monitor gauges from your smartphone.
- Auto Calibration: Speedometer and fuel level settings can be quickly adjusted with minimal effort.
Upgrade your 87-91 Ford truck or Bronco with the Dakota Digital RTX system and enjoy the best of both worlds—timeless looks with modern precision!
(Bezel not included, system uses OEM bezel.)
