Description
The Pete and Jakes 1932 Ford Weld-On Motor Mounts are a critical component for builders looking to drop a Small Block Chevy (SBC) into a 1932 Ford chassis. These mounts are designed specifically for boxed frame rails, providing a permanent and high-strength foundation for your engine.
Robust and Simple Design
-

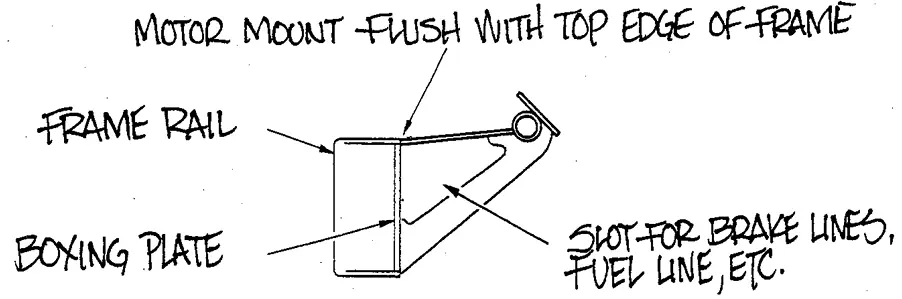

Chassis Integration: Specifically engineered for fully boxed 1932 Ford frame rails. These mounts are welded directly to the inner side of the boxed rail, ensuring maximum torsional rigidity.
-
Engine Compatibility: Tailored for the Small Block Chevy platform. They are designed to work in conjunction with standard factory-style rubber motor mounts, which helps isolate engine vibration from the rest of the chassis for a smoother ride.
-
Perfect Alignment: When positioned correctly on the frame, these mounts set the engine at the ideal height and angle to clear the steering box and firewall while maintaining proper driveline geometry.
Material and Finish
-
Heavy-Duty Steel: Laser-cut and formed from heavy-gauge steel to handle the torque and weight of high-performance SBC engines.
-
Weld-Ready: Supplied in bare steel, these mounts come ready to be tacked and then fully welded into position after you’ve finalized your engine mock-up.
Installation Tips
-
Mock-Up is Key: It is highly recommended to mock up your engine and transmission together with the body or firewall in place before final welding. This ensures you have the necessary 3/4″ to 1″ of clearance at the firewall.
-
Boxing Plates: If you are using an original 1932 frame that has not been boxed, you will need to install boxing plates PNJ 3025 first to provide the structural surface required for these weld-on mounts.
