Dakota-Inspired Digital RTX Gauges for 1983–1987 Land Rover Defender

Description

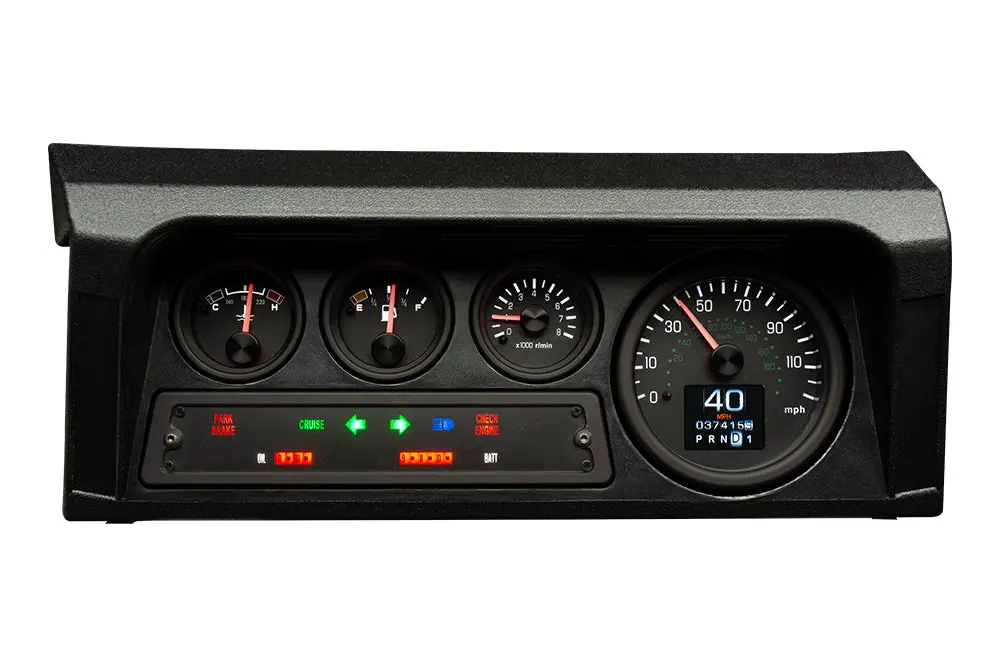

The Dakota Digital RTX Gauge System for 1983–2007 Land Rover Defenders is the ultimate instrumentation upgrade for the classic, “non-Puma” dashboard. Designed to honor the Defender’s rugged, utilitarian heritage, this system mimics the original aesthetic while replacing aging mechanical components with state-of-the-art electronics, perfect for modern engine swaps or overland builds.

OEM Styling with Modern Precision

The RTX series is meticulously designed to retain the Land Rover’s stock look, utilizing factory-style layouts and face styling. Once powered on, however, it reveals its high-tech capabilities:

• Direct Fit Design: Specifically engineered for the pre-2007 (non-Puma) dash, fitting into the original or reproduction bezel.

• Expanded Monitoring: Includes a 120 MPH speedometer and an 8,000 RPM tachometer—significant upgrades over the original factory units.

• High-Definition TFT Center: A configurable digital screen provides critical data like odometer readings, trip meters, and performance timers without cluttering the vintage face.

• RGB LED Lighting: Choose from over 30 user-selectable colors to independently customize the needles, sweeps, and digital displays, with independent themes for day and night.

Comprehensive Instrumentation

This system combines traditional analog sweeps with modern digital readouts:

• Analog Gauges: Speedometer (120 MPH), Tachometer (8k RPM), Water Temperature, and Fuel Level.

• Digital Bar Graphs: Oil Pressure (0–80 psi) and Voltmeter (9–17 VDC).

• Performance Tracking: Includes a 0–60 MPH timer, 1/4 and 1/8 mile ET/trap speed, and high-speed/RPM recall.

• Utility Indicators: Integrated turn signals, high beam, check engine, parking brake, 4×4, and “Wait to Start” for diesel applications.

Simplified Installation & Calibration

Dakota Digital has engineered this system for ease of use in custom or restored vehicles:

• Central Control Box: All sensors and power wires run to a single, compact box (5.5″ x 3.5″), which then connects to the dash with a single data cable, eliminating cluttered wiring.

• Full Sensor Kit: Includes 1/8″ NPT water temperature and solid-state oil pressure sensors, plus a pulse generator to replace the original speedometer cable.

• Bluetooth App Integration: Calibrate your speedometer, set your fuel level, and configure all colors and themes via the free Dakota Digital mobile app on your smartphone or tablet.

Compatibility Note

• Fitment: Designed for 1983–2007 Land Rover Defender models. It is not compatible with the 2007+ “Puma” style dashboards.

• Bezel: The gauge system utilizes your OEM or a reproduction style bezel; the bezel itself is shown in photos for presentation and is not included.
