3/4″ Diameter Double U-Joint with 36-Spline & Smooth Bore – Custom Finish Option

Description

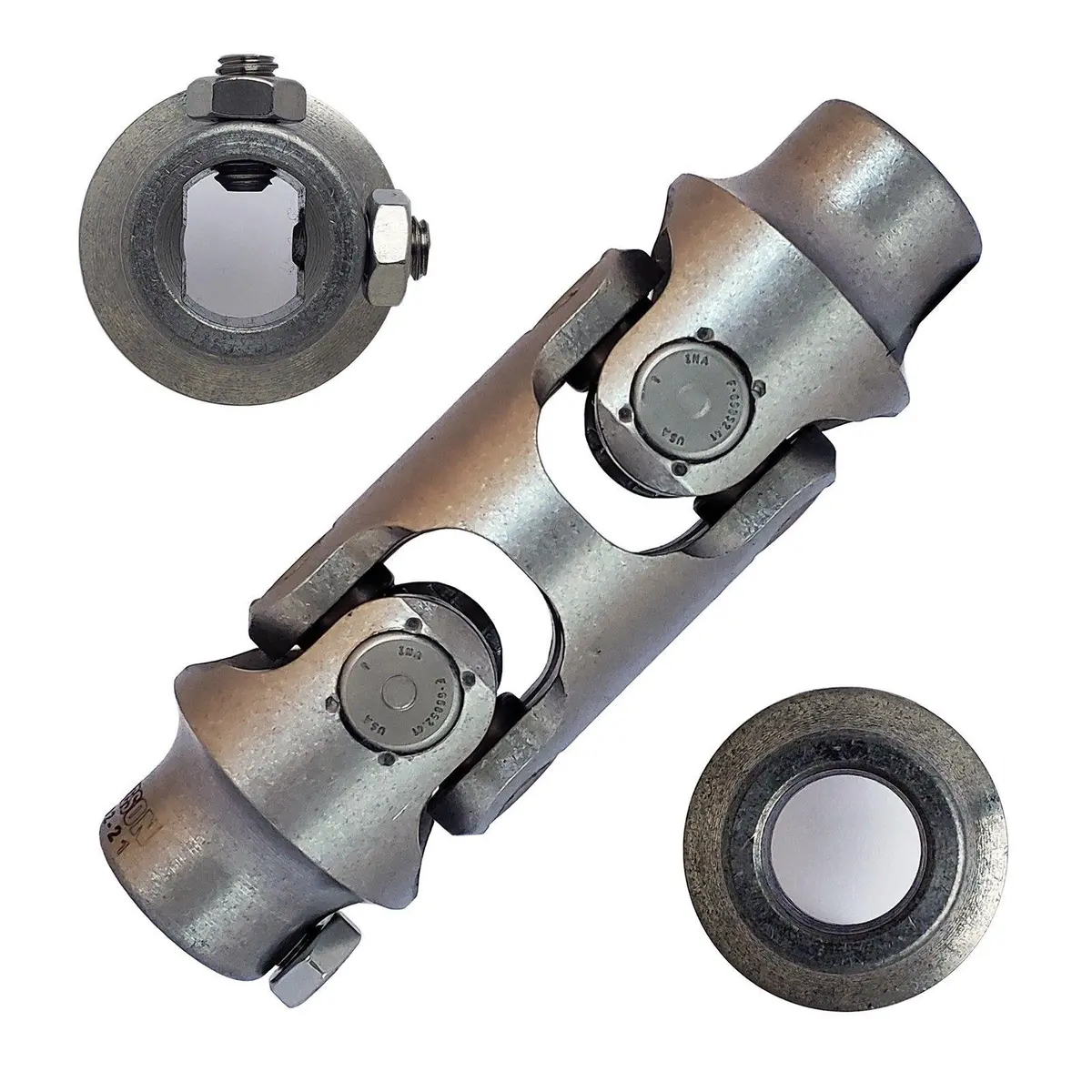

Steering Universal Joint – Double

3/4 DD X 3/4 Smooth Bore Steering U-Joint, 5-1/8″ Overall Length, 1-5/8″ Outside Diameter.

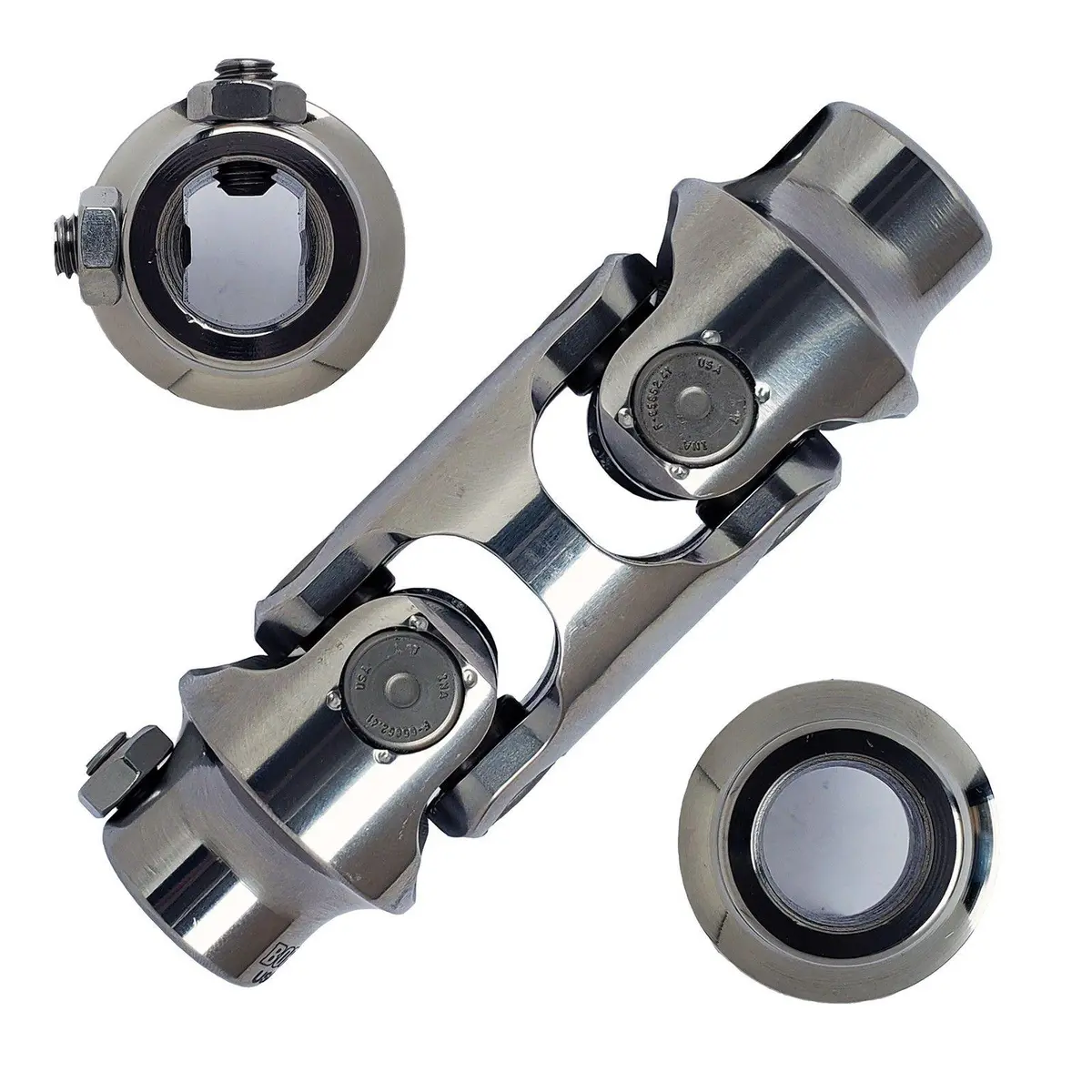

Choose: Steel, Stainless Steel, Polished Stainless Steel.

Angles over 35 Degrees can be negotiated by using a Double Universal Joint. These Double Universal Joints can accommodate angles up to 70 Degrees and are available in Steel, Stainless Steel, and Polished Stainless Steel.

Tech Tip: Because a double u-joint used in combination with a single u-joint will function the same as a three joint system, a shaft support bearing is required to prevent the shaft from looping and binding.
